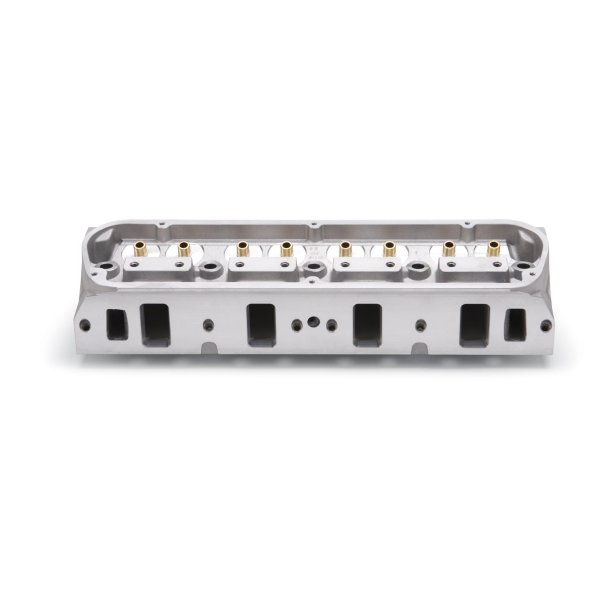

Topstykke Performer RPM 1 stk. Ford, 289, 302, 351W (Edelbrock 60389)
Passer på følgende biler : Ford, 289, 302, 351W
Brand: Edelbrock
Manufacturer's Part Number:60389
Part Type:Cylinder Heads
Product Line:Edelbrock Performer RPM Cylinder Heads
Combustion Chamber Volume (cc):60
Intake Runner Volume (cc):170cc
Exhaust Runner Volume (cc):60cc
Cylinder Head Style:Bare
Cylinder Head Material:Cast aluminum
Intake Valve Diameter (in.):2.020 in.
CNC-Machined Combustion Chamber:No
CNC-Machined Intake Runner:No
CNC-Machined Exhaust Runner:No
Intake Port Location:Standard
Exhaust Port Shape:Square
Exhaust Port Location:Standard
Intake Valves Included:No
Exhaust Valves Included:No
Exhaust Valve Diameter (in.):1.600 in.
Valve Springs Included:No
Damper Spring Included:No
Retainers Included:No
Locks Included:No
Valve Stem Seals Included:No
Rocker Arm Studs Included:No
Rocker Arms Included:No
Rocker Arm Nuts Included:No
Guideplates Included:No
Valve Cover Mounting Style:Perimeter bolt
Accessory Bolt Holes Drilled:Yes
Intake Valve Angle:20
Valve Guides Included:Yes
Valve Guide Material:Manganese bronze
Valve Seats Machined:No
Valve Seat Material:Powdered metal
Cylinder Head Color:Natural
Steam Holes Drilled:No
Oiling Style:Through pushrod
Machined for O-Ring:No
Heat Crossover:No
Remanufactured:No
Quantity: The last one in stock and can not get more
Notes:
Heads will accept 1982-95 5.0L V8 pedestal mount rocker arms and valvetrain. 1986 5.0L need pistons notched for clearance. Will not accept rail rockers. 5.0L requires Head Bolt Bushings EDL-9680 and either head bolt kit EDL-8552 (7/16") or stock head bolts. Bare heads will have valve guides and seats installed, but will require final sizing & a valve job to match the valves you will be using.
CARB EO Number(s):D-215-94
Emissions:California EO Approved
Edelbrock Performer RPM Cylinder Heads
Edelbrock Performer RPM aluminum cylinder heads feature threaded inserts in the rocker studs and exhaust manifold bolt holes for superior strength and durability. They also include hardened seats, bronze valve guides, and fully machined valve cover rails for a more consistent gasket seal. These heads offer improved power throughout the RPM range for greater throttle response and top-end horsepower. Countless options are available; order the model recommended for your vehicle and engine application.
Er varen ikke på lager, kan den ikke skaffes mere............ Så et enkelt mere er heller ikke en mulighed
Hvis du er i tvivl om det er det rigtige til din Amerikaner bil, så endelig ring eller email til os.
