Dette her sæt har været monteret, dog aldrig kørt nogen steder. Så derfor denne her billige pris....... Prisen gælder kun på dette her sæt som har været monteret.

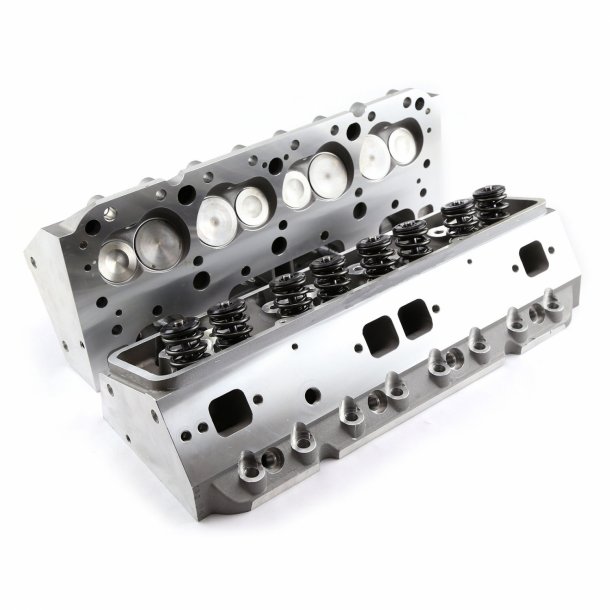

Passer på følgende biler :
Chevrolet small block. op til 1986
| Part Number: | FF281.1001 |
| Part Type: | Cylinder Heads |
| Cylinder Head Style: | Assembled |
| Cylinder Head Material: | Aluminum |
| Cylinder Head Finish: | Natural |
| Combustion Chamber Volume (cc): | 64 cc |
| CNC-Machined Combustion Chamber: | No |
| Intake Runner Volume (cc): | 190 cc |
| Exhaust Runner Volume (cc): | n/a |
| CNC-Machined Intake Runner: | No |
| CNC-Machined Exhaust Runner: | No |
| Intake Port Shape: | Rectangular |
| Intake Port Location: | Standard |
| Exhaust Port Shape: | Square |
| Exhaust Port Location: | Standard |
| Spark Plug Style: | Straight |
| Comp. Valve Job: | No |
| Intake Valves Included: | Yes |
| Intake Valve Diameter (in): | 2.050 in. |
| Exhaust Valves Included: | Yes |
| Exhaust Valve Diameter (in): | 1.600 in. |
| Valve Springs Included: | Yes |
| Maximum Valve Lift (in): | 0.600 in. |
| Outside Diameter of Outer Spring (in): | 1.450 in. |
| Damper Spring Included: | Yes |
| Number of Springs Per Valve: | Dual |
| Retainers Included: | Yes |
| Retainer Material: | Chromoly steel |
| Locks Included: | Yes |
| Lock Style: | 7 Degree |
| Valve Stem Seals Included: | Yes |
| Valve Stem Seal Style: | Positive stop |
| Rocker Arm Studs Included: | No |
| Rocker Arms Included: | No |
| Rocker Arm Nuts Included: | No |
| Guideplates Included: | No |
| Valve Cover Mounting Style: | Center & Perimeter Bolt |
| Accessory Bolt Holes Drilled: | Yes |
| Intake Valve Angle: | 23 deg. |
| Exhaust Valve Angle: | 23 deg. |
| Valve Guides Included: | Yes |
| Valve Guide Material: | Bronze |
| Valve Seats Machined: | Yes |
| Valve Seat Machine Style: | 3-angle |
| Valve Seat Material: | Ductile iron |
| Steam Holes Drilled: | No |
| Oiling Style: | Through pushrod |
| Quantity: | Sold as a pair. |
Assembly Specifications
Max Lift: .650"
Coil Bind: .700"
Intake Install: 130lbs @ 1.84
Exhaust Install: 130lbs @ 1.84
Closed Seat Pressure: 130lbs
Open Seat Pressure: 335lbs @ .600 lift
Er varen ikke på lager, må der påregnes extra fragt omkostninger, hvis det skal flyves hjem.
Hvis du er i tvivl om det er den rigtige reservedel til din Amerikaner bil, så endelig ring eller email til os.
