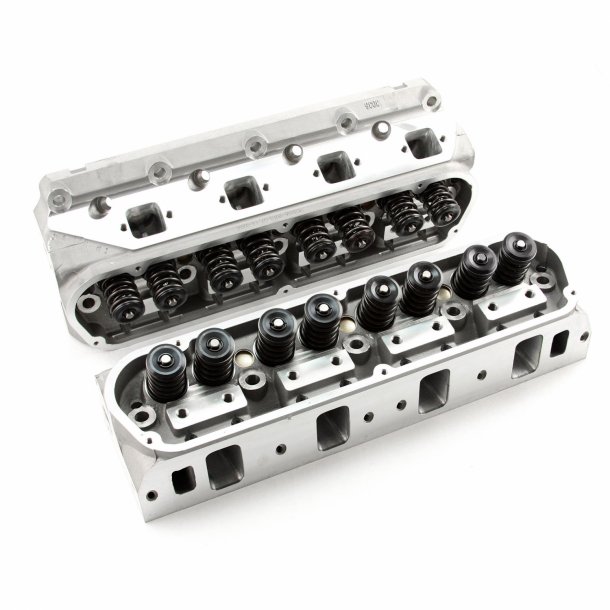

Complete Aluminum Cylinder Heads SBF FORD 289 / 302 / 351W 190cc 62cc 2.05/1.60
|
| Part Number: |
FF281.1004 |
| Part Type: |
Cylinder Heads |
| |
|
| Cylinder Head Style: |
Assembled |
| Cylinder Head Material: |
Aluminum |
| Cylinder Head Finish: |
Natural |
| Combustion Chamber Volume (cc): |
62 cc |
| CNC-Machined Combustion Chamber: |
No |
| Intake Runner Volume (cc): |
190 cc |
| Exhaust Runner Volume (cc): |
n/a |
| CNC-Machined Intake Runner: |
No |
| CNC-Machined Exhaust Runner: |
No |
| Intake Port Shape: |
Rectangular |
| Intake Port Location: |
Standard |
| Exhaust Port Shape: |
Square |
| Exhaust Port Location: |
Standard |
| Spark Plug Style: |
Standard |
| Comp. Valve Job: |
No |
| Intake Valves Included: |
Yes |
| Intake Valve Diameter (in): |
2.050 in. |
| Exhaust Valves Included: |
Yes |
| Exhaust Valve Diameter (in): |
1.600 in. |
| Valve Springs Included: |
Yes |
| Maximum Valve Lift (in): |
0.550 in. |
| Outside Diameter of Outer Spring (in): |
1.450 in. |
| Damper Spring Included: |
Yes |
| Number of Springs Per Valve: |
Dual |
| Retainers Included: |
Yes |
| Retainer Material: |
Chromoly steel |
| Locks Included: |
Yes |
| Lock Style: |
7 degree |
| Valve Stem Seals Included: |
Yes |
| Valve Stem Seal Style: |
Positive stop |
| Rocker Arm Studs Included: |
No |
| Rocker Arms Included: |
No |
| Rocker Arm Nuts Included: |
No |
| Guideplates Included: |
No |
| Valve Cover Mounting Style: |
Perimeter Bolt |
| Accessory Bolt Holes Drilled: |
Yes |
| Intake Valve Angle: |
20 deg. |
| Exhaust Valve Angle: |
20 deg. |
| Valve Guides Included: |
Yes |
| Valve Guide Material: |
Bronze |
| Valve Seats Machined: |
Yes |
| Valve Seat Machine Style: |
3-angle |
| Valve Seat Material: |
Ductile iron |
| Steam Holes Drilled: |
No |
| Oiling Style: |
Through pushrod |
| Machined for O-Ring: |
No |
| Heat Crossover: |
No |
| Quantity: |
Sold as a pair. |
|
|
Assembly Specifications
Max Lift: .550
Coil Bind: .740
Intake Install: 130lbs @ 1.8
Exhaust Install: 130lbs @ 1.8
Closed Sear Pressure: 110lbs
Open Seat Pressure: 300lbs
|
|
